The machine-side converter rectifies the three-phase AC output from the fan-motor stator to DC to achieve stable DC voltage output under the conditions of different wind speeds and rotational speeds under the fan. The grid-side converter converts the DC power into a three-phase AC power inverter and sends it to the grid to achieve reliable grid-connected operation of full-power wind turbines
Product Details：

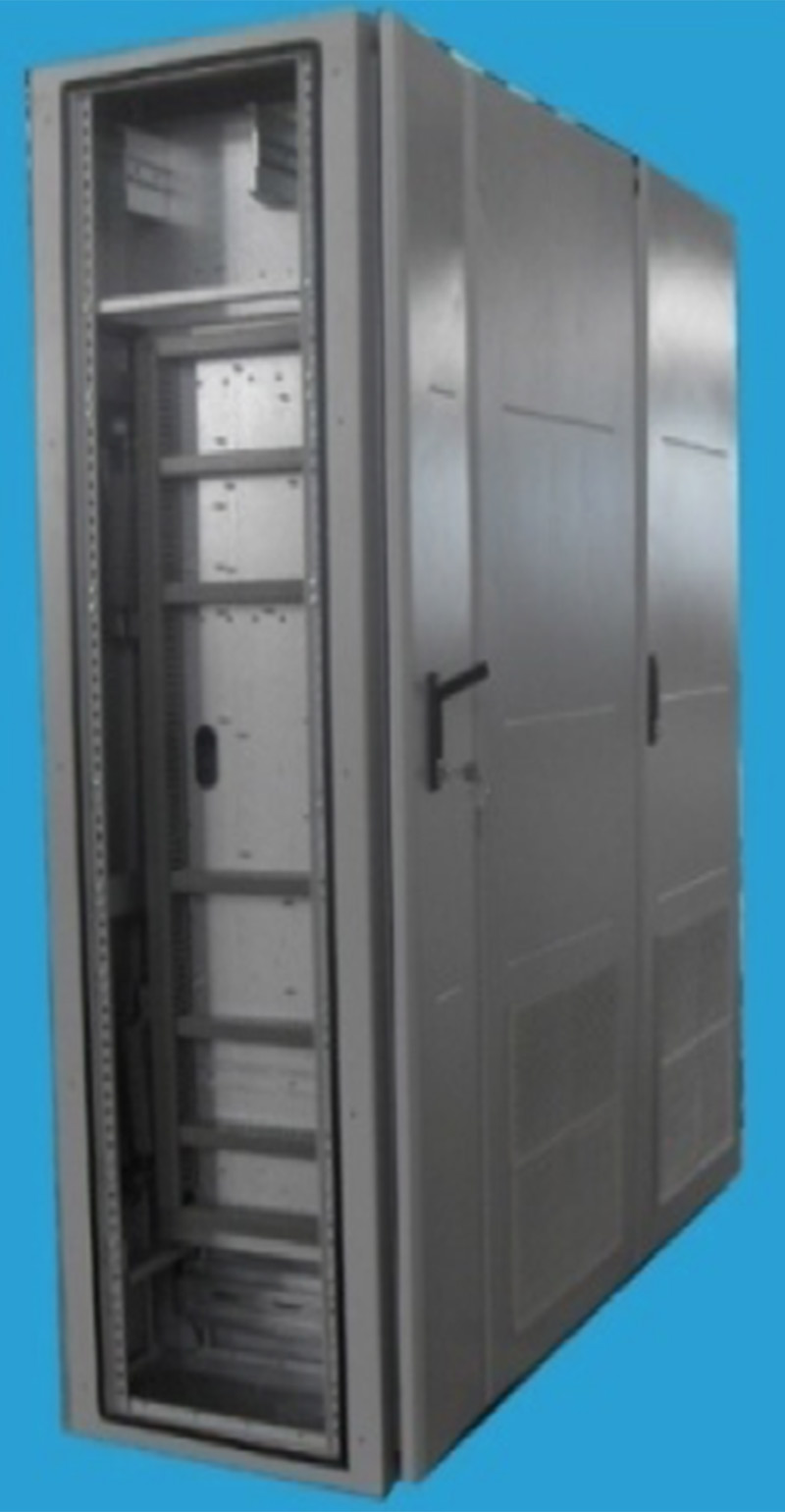

Cabinet design features
1.The cabinet body adopts a frame structure, the frame adopts standard profiles, and the frame connection parts adopt full welding;
2.The cabinet side panels, top panels, back panels and bottom panels can all be disassembled;
The cabinets are frame-type cabinets in parallel;
4.Each door panel, side panel, back panel, top panel and stainless steel bottom panel of the cabinet are prefabricated with M8 grounding studs,
It is equipped with a 16mm2 yellow-green grounding wire to ensure conduction with the cabinet frame, and a grounding logo is pasted next to the grounding stud;
5.The good fan heat ventilation layout greatly improves the thermal stability of the product.
| Wind energy converter power cabinet | customize | depends on customers’ requirement |
Advantage
1.Cabinet anti-corrosion grade：C3
2.Cabinet protection level：IP54
3.Cabinet designed life≥25 years
4.Effectively resist high and low temperature, humidity and salt fog environment, adapt to harsh wind farm operation.
