Standby Power Cabinet

The backup power system is used in the power system of enterprises in the financial field, military industry field, and big data center.

Send Inquiry

The main solution is to ensure that enterprises and institutions have backup power supplies in time during power outages and disasters. Prepare for emergency power supply for enterprises and organizations, and be able to respond to any emergency at any time. At present, global banks and big data centers are all starting preparations for the procurement of backup power systems to ensure the stability of the power system.

customize depends on customers’ requirement

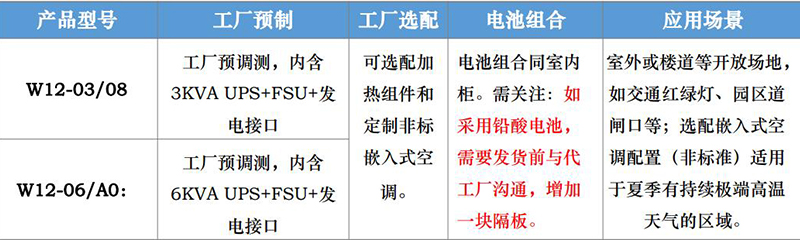

standby power cabinet 4

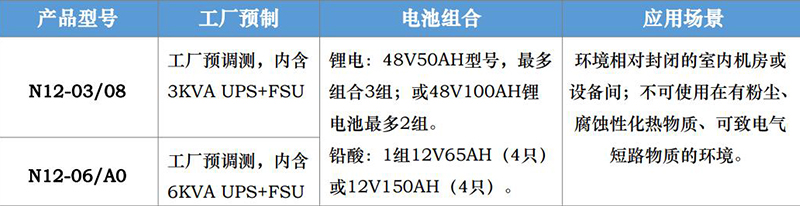

standby power cabinet 5

Product number Factory prefab Battery pack Application scenario
N20-A0/A9 Factory pre- commissioning , including 10KVAUPS+FSU Standard configuration: 16 12V/100Ah or 12V/150Ah lead-acid batteries can be configured, which can be used in series as a set;

Expansion configuration: 12V/100Ah or 12V/150Ah lead-acid batteries can be added according to site requirements. 16 lead-acid batteries are divided into one group, and the two groups are used in parallel, and a battery cabinet is added at the same time

Indoor equipment rooms or equipment rooms with relatively closed environments; do not use in environments with dust, corrosive and thermal substances, and substances that can cause electrical short-circuits.



N20-A0/B9
N20-A5/B9 Factory pre- commissioning , including 15KVAUPS+FSU
N20-A5/C8
N20-A5/E8
N20-B0/C8 Factory pre- commissioning , including 20KVAUPS+FSU Standard configuration: 32~40 12V/100Ah or 12V/150Ah lead-acid batteries can be configured. Two sets of 192~240V battery packs can be connected in series. When connecting with a neutral line, a battery cabinet needs to be added. The backup power system is composed of 2 cabinets.

Expansion configuration: 32~40 12V/100Ah or 12V/150Ah lead-acid batteries can be added , which are connected in series to form two sets of 192V battery packs. The electrical system consists of 4 cabinets

N20-B0/E8

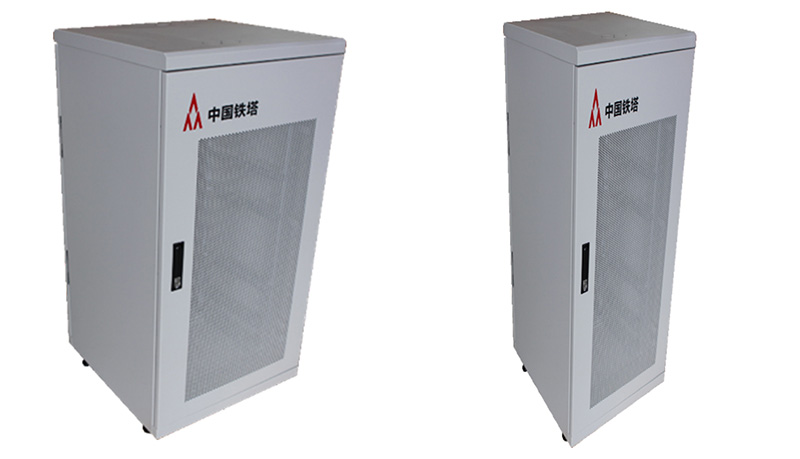

standby power cabinet 2
