The outdoor power system is an AC/DC indoor power system, and the stand-alone unit uses a 48V/50A rectifier module. Various temperature methods such as heat exchange, direct ventilation, and TEC are available to provide reliably integrated and distributed energy solutions for various outdoor communication equipment. The system has the ability to adapt to a wide range of AC input, high output efficiency, all-around lightning protection, complete battery management and remote monitoring, and other functions.
High safety regulations involve: the power system meets CE standards.
Rectifier module efficiency is greater than 96%
Operating temperature range of -40～+75℃, 55℃ output without derating
Mature temperature control technology to ensure the safe and stable operation of the system
The power module supports non-destructive hot-swappable technology, making installation and maintenance more convenient
Complete battery management function to extend battery life
Support in-band monitoring

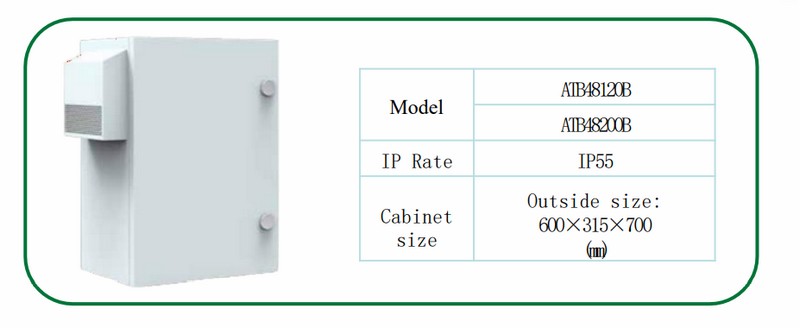

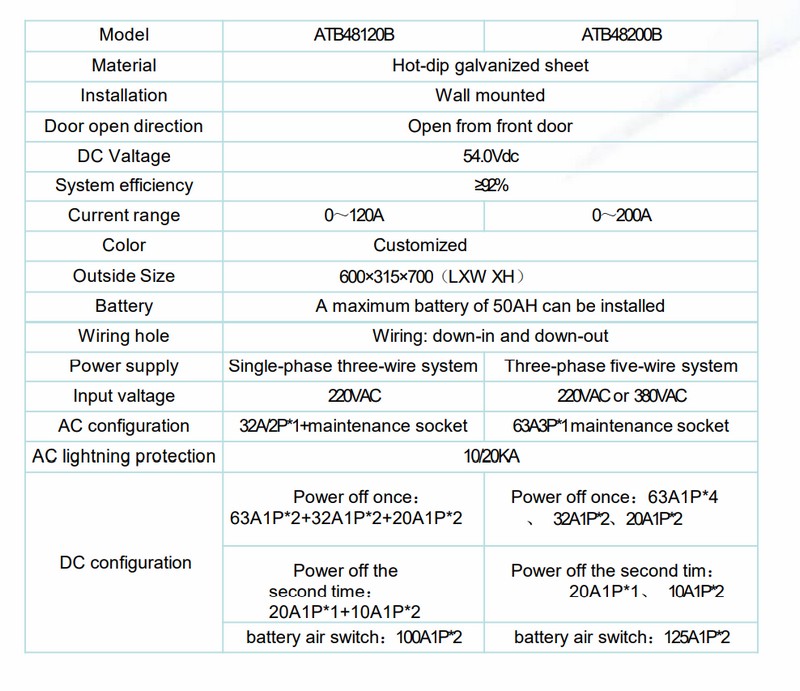

ATB outdoor wall mounted series，includes 2 model: ATB48120B and ATB48200B,This series of products are made of sheet metal materials and can be directly used in natural environments. The cabinet adopts anti-theft design and can be installed in wall areas such as roads, parks, and mountainous areas. Base station equipment, power supply equipment, batteries, etc. can be installed in the cabinet. Temperature control equipment, transmission equipment, etc., can provide reliable mechanical and environmental protection cabinets for the normal operation of internal equipment.
