Energy Storage System

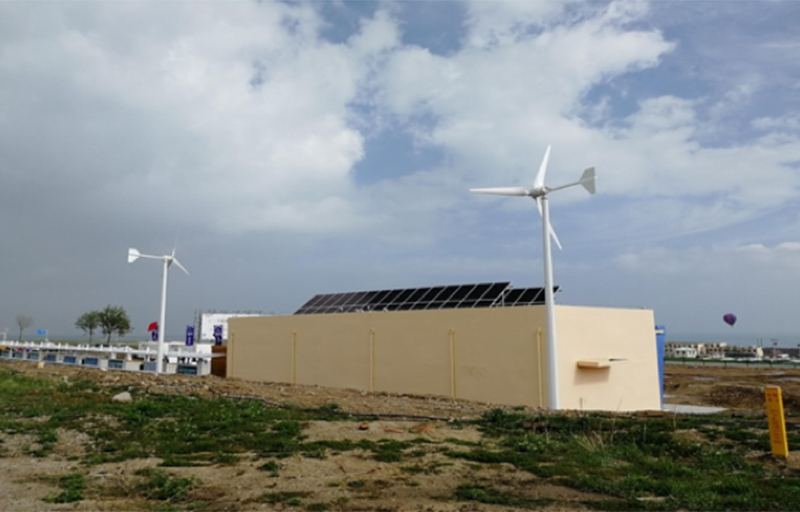

Megawatt(MW) class wind and solar energy storage box:
(1)Microgrid(top side): The energy storage system is independent or coordinated with other energy sources to supply power to the load, mainly to solve the problem of power supply reliability.

Send Inquiry

(2)Auxiliary new energy grid connection(right side): effectively solve the abandonment of wind and solar energy, and improve economic benefits; reduce instantaneous power changes and reduce impact on the grid; track plan and dispatch, improve grid-connection controllability; improve power generation forecasting accuracy, and improve grid-connection friendliness.
(3)Demand side response(bottom side):Relying heavily on peak-to-valley electricity price differences and subsidies, developed countries such as Europe and the United States already have a profit model, mainly for industrial and commercial applications, and the potential for household energy storage is huge.
(4)Power frequency modulation(left side): On average, the energy storage frequency modulation effect is 1.7 times that of hydropower units, 2.5 times that of gas-fired units, and more than 20 times that of coal-fired units.

energy storage system 2

2.1System composition

This system mainly includes:

* Energy converter storage(PCS): One 500kW off-grid two-way energy storage converter is connected to the grid on a 0.4KV AC bus to realize the bidirectional flow of energy.
* Lithium iron phosphate battery: using Ganfeng 3.2V/86AH power battery, 4P3S module to form 240 strings of 768V battery clusters, a single container of 4 clusters, a total of about 1.05MWh energy.
* EMS&BMS:According to the upper-level scheduling instructions, it completes the charge and discharge control of the energy storage system and the monitoring of battery SOC information.*
Container: 1 30-foot container forms a 0.5MW/1MWh energy storage system.

Industrial 400*400*700 3.5-5.5mm
Commercial 450*350*700 3.5-5.5mm
Household 450*450*700 3.5-5.5mm
customize depends on customers’ requirement

System Features

(1)This system is mainly used for peak-to-valley arbitrage, and at the same time can be used as a backup power source to avoid power increase and improve power quality.
(2)The energy storage system has complete communication, monitoring, management, control, early warning and protection functions, long-term continuous and safe operation, and can detect the operating status of the system through the host computer, and has a wealth of data analysis functions.
(2)The BMS system not only communicates with the EMS system to report battery pack information, but also directly communicates with the PCS using the RS485 bus, and completes various monitoring and protection functions for the battery pack with the cooperation of the PCS.
(3)Regular 0.2C charge and discharge, can work off-grid or grid-connected.

    Remark
1 rated power 0.5MW /
2 Rated Capacity 1MWh /
3 DC voltage range 600V~900V /
4 Average system efficiency ≥86% /
5 humidity ≤70%RH /
6 Protection level IP54 /
7 Salt spray resistance 600h /
8 Fire Fighting System Heptafluoropropane /
9 Allowable maximum altitude 2000m /
10 Required Container size 30ft High cabinet

For grid operation, active and reactive power can be dispatched through the PQ mode or droop mode of the energy storage converter to meet grid-connected charging and discharging electricity demand.
◇ The energy storage system discharges the load during the electricity price peak period or the load peak period, which not only realizes the peak-shaving and valley-filling function of the grid, but also completes the energy supplement during the peak period of power consumption.
◇ The energy storage converter accepts superior power dispatch and realizes the charge and discharge management of the entire energy storage system according to the intelligent control of peak, valley, and flat periods.
◇ When the energy storage system detects an abnormality in the mains, the energy storage converter is controlled to switch from the grid-connected operation mode to the isolated island (off-grid) operation mode.
◇ When the energy storage converter operates independently from the grid, it serves as the main voltage source to provide a stable electrical voltage and frequency for the container’s local load to ensure its uninterrupted power supply.

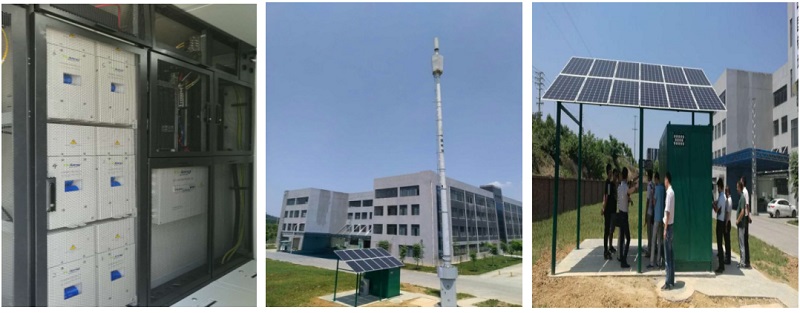

Communication energy storage:

energy storage system 8

1.The location of the base station has no mains power and is off-grid area
2.There is city power, which is unstable, but the equipment needs to be stable in the power supply area
3.There is a stable electricity supply, photovoltaic power needs to be increased, and peak-shaving and valley-filling areas are needed
4.It can be used in areas rich in wind and light clean energy

Household Energy Storage System:

The household energy storage system uses the solar power generation device on the roof, the energy generated by the household wind turbine, and the low-cost power source of the social power supply system to store the rich electricity in the energy storage system for peak use, not only for emergency The power supply can save the family electricity expenses even more. In addition to home use, it can also be used for field operations, emergency power outages, and for general household appliances, computers, lighting, communication equipment, etc.

Commercial Energy Storage System:

The energy storage system is a system that can store electrical energy and supply power. This system is mainly composed of two major units:
Energy storage unit and monitoring and dispatching management unit. Energy storage unit includes energy storage battery pack, BMS battery management system,
PCS energy storage converter, HCC intelligent switching cabinet, etc.; monitoring and dispatching management unit includes computer, control software
And display terminal.
