AC Series Embedded Power Systems,includes 4 models: AC48120B、AC48200B、AC48200A、 AC48300B， This series of cabinet products are made of sheet metal materials. The product integrates a powerful centralized monitoring system, which is powerful and comprehensive and can use 485 data links to realize remote monitoring and control.

Product feature:
Modular design
1.The modular design is adopted. According to the different energy requirements of different users, the matching embedded power supply.
2.The rectifier modules can be quickly installed and removed, and customers can choose and configure an appropriate number of rectifier modules according to the site conditions.
3.The design is compact and takes up little space in the cabinet.

Intelligent management
1. The 485 data link can be used to realize remote monitoring and control.
2. Integrated power supply centralized monitoring system, powerful and comprehensive, customers do not need to configure the monitoring module separately.

Flexible deployment
1. The embedded design meets the installation requirements of 19-inch racks and can be quickly put into commercial operation.

Protection design
The box body is made of a high-quality galvanized steel plate, and the surface is electrostatically sprayed at a high temperature, which is anti-corrosion and beautiful.

Simple maintenance
It meets the front (one-sided) maintenance of the equipment, supports top, left, and right cable entry and exit methods, and has enough space for operation and maintenance, which can easily replace AC and DC components.

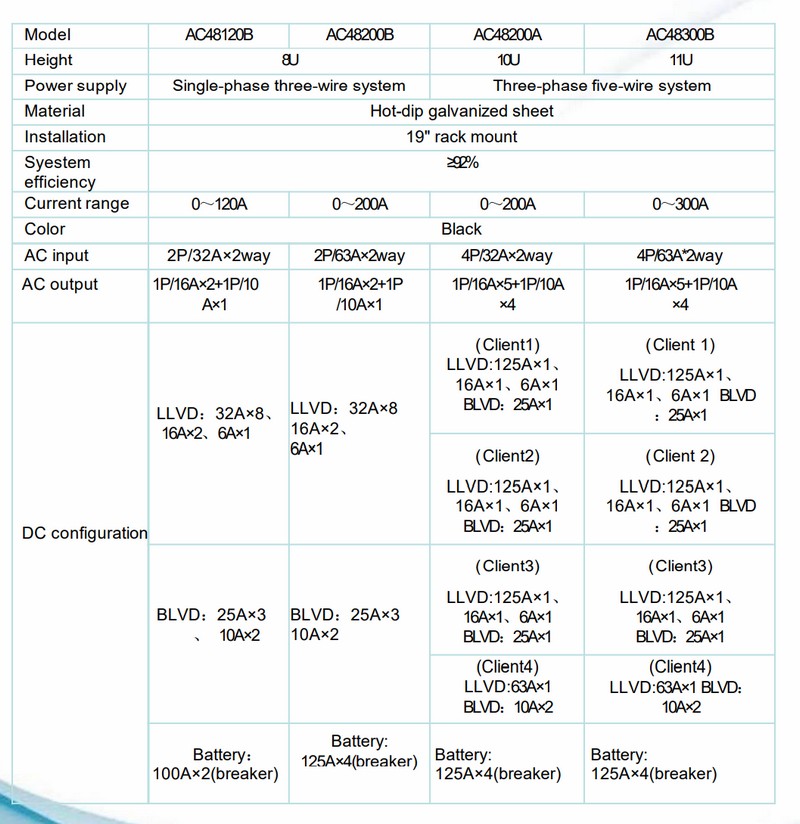

Parameter
