The communication energy produced by our company provides a simple, efficient and reliable full range of power supply solutions, with an output capacity ranging from 30A to 24,000A. Products include embedded power supply, indoor power supply, outdoor power supply, computer room power supply, hybrid power supply and communication energy network management series, which can provide efficient and reliable DC power supply for the communication network access layer, convergence layer and core layer. The efficiency of the rectifier module is up to 98%, helping customers to achieve a three-level energy-saving strategy at the equipment level, site level, and entire network level.
Product Details:

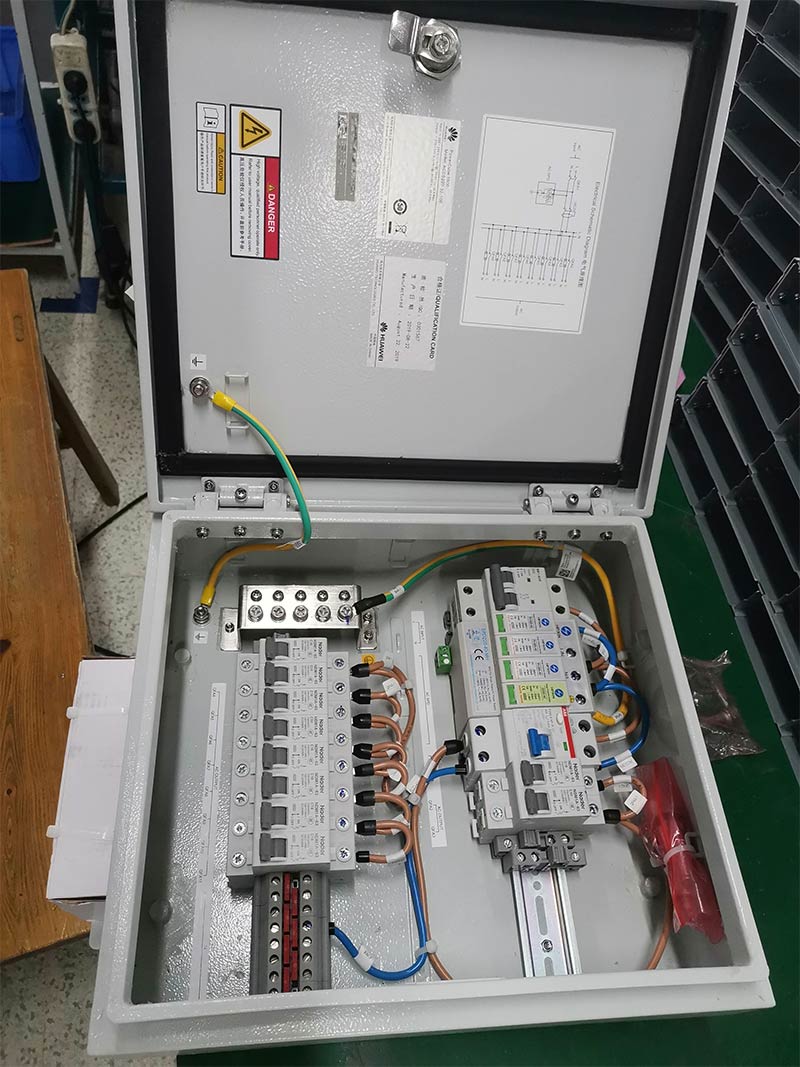

Embedded power supply is a basic DC power supply system that supplies power to network devices such as wireless base stations, wired access networks, transmission networks, and corporate communication networks. It can be deployed separately or integrated into other power supply systems. The power supply system includes power distribution, rectification, monitoring and other units, which can meet the wide range of DC output from 30A to 400A, and realize the conversion of 220V AC input to stable -48V DC output.
Each functional unit adopts standardized and modular design, easy to expand, easy to install, and supports multiple installation methods such as standard 19-inch rack or embedded cabinet installation. The system can adapt to a wide range of AC input, with complete battery charge and discharge management, remote environmental monitoring and other functions.
| Outdoor power supply | customize | depends on customers’ requirement |
| Indoor power supply | ||
| Machine room power supply | ||
| Embedded power supply |

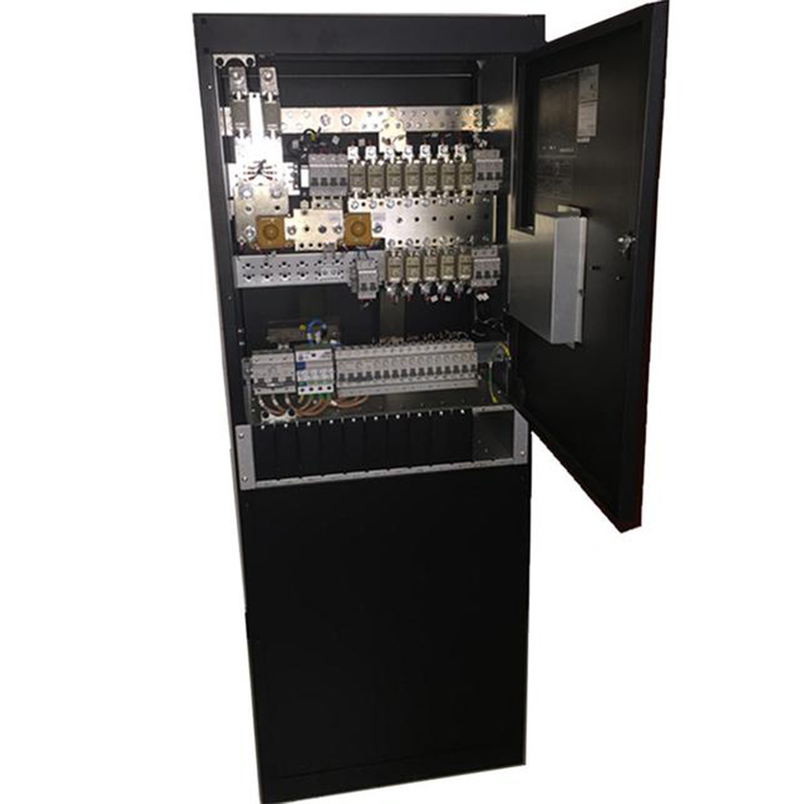

The indoor power system is an AC/DC indoor power system, and the stand-alone unit uses a 48V/50A rectifier module. The power system provides stable and reliable DC power for -48V series communication equipment. The system can be flexibly applied to indoor base stations, indoor central computer rooms, BSC and other scenarios by adjusting the number of installed rectifier modules. A number of optimized maintainability designs are used to make maintenance simple and convenient.
High safety regulations involve: the power system meets CE standards.
Rectifier module efficiency is greater than 96%
Perfect module sleep function, improve system operation efficiency
Operating temperature range of -40～+75℃, 55℃ output without derating
The power module supports non-destructive hot-swappable technology, making installation and maintenance more convenient
Complete battery management function to extend battery life
Monitor module LCD display, realize visual monitoring

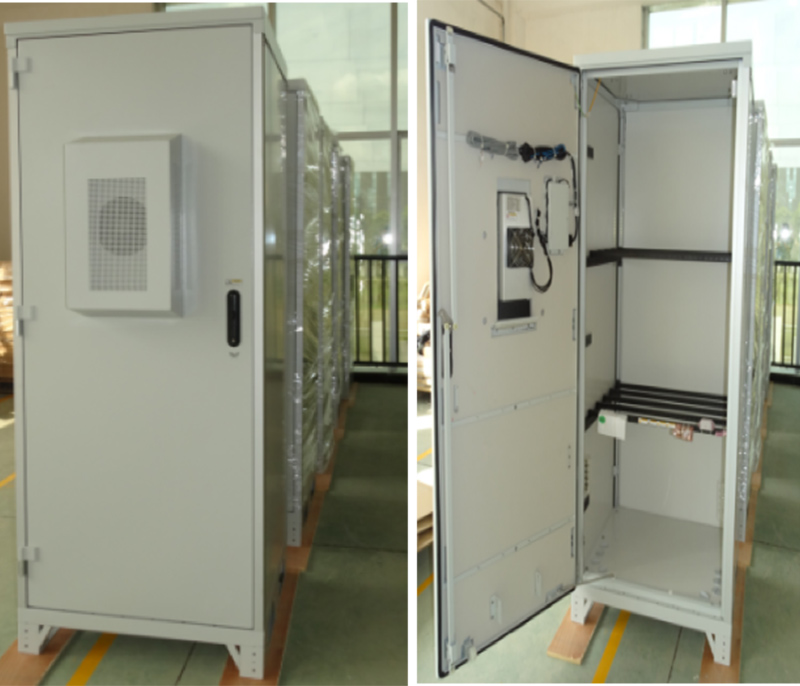

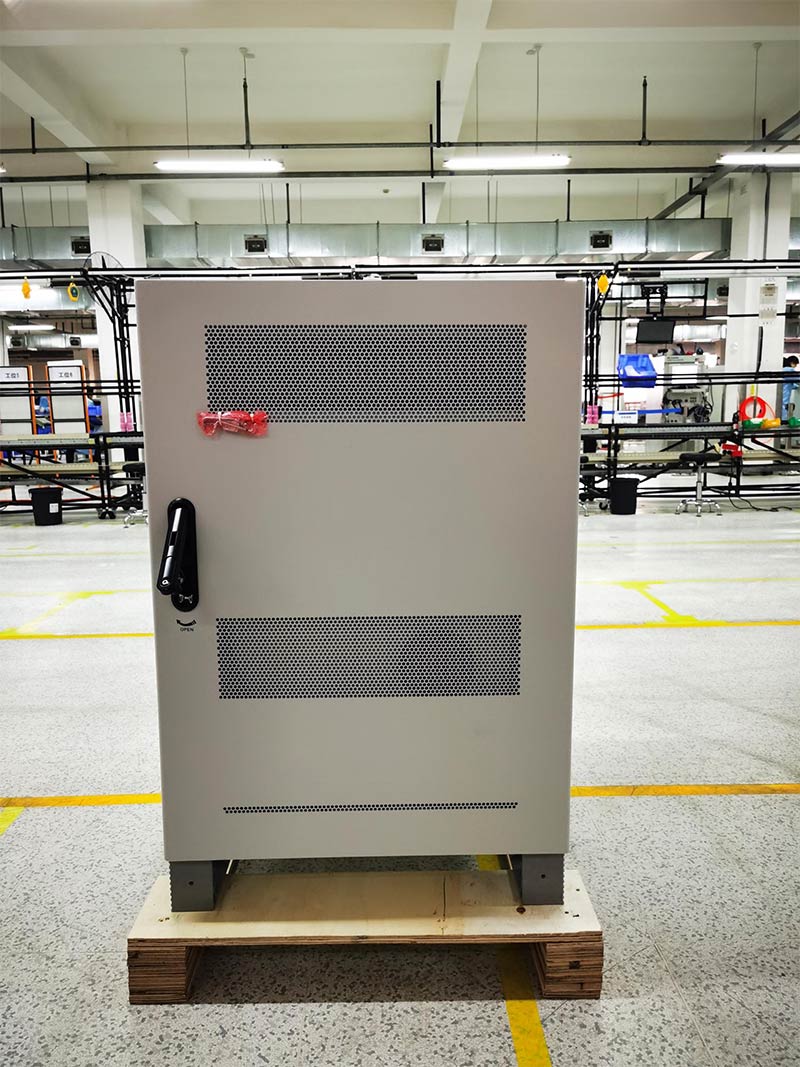

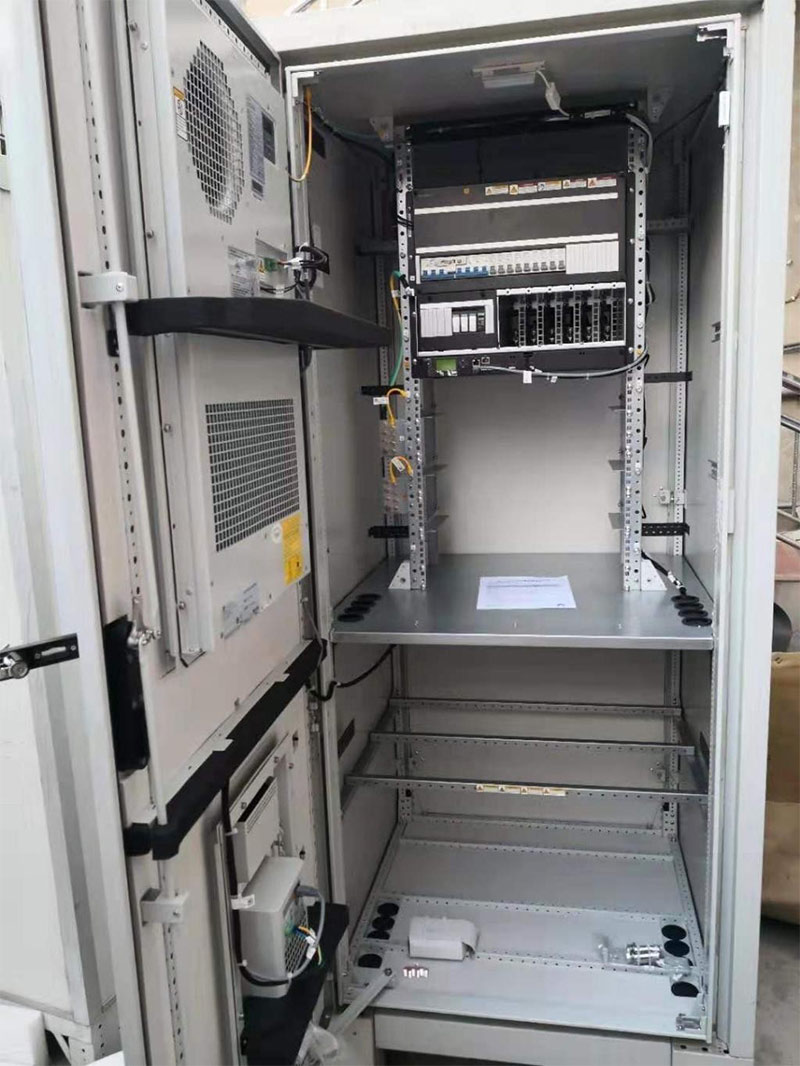

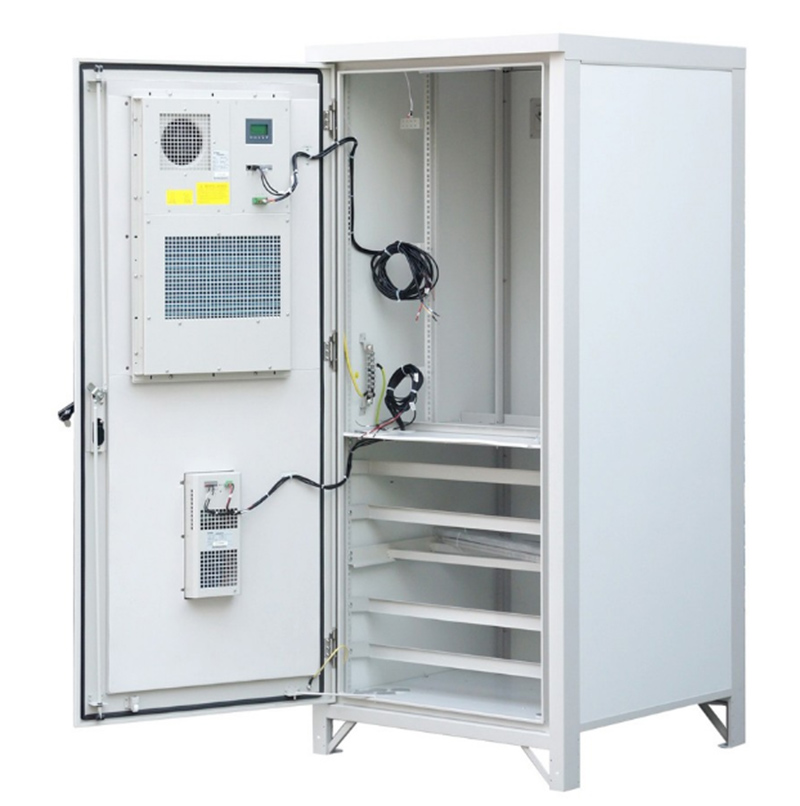

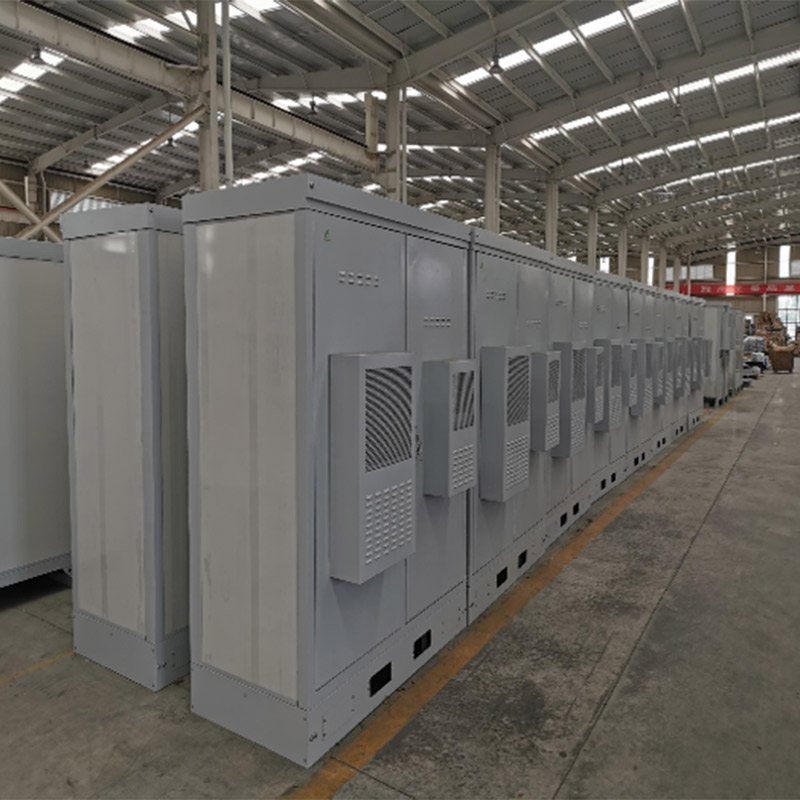

The outdoor power system is an AC/DC indoor power system, and the stand-alone unit uses a 48V/50A rectifier module. Various temperature methods such as heat exchange, direct ventilation, and TEC are available to provide reliable integrated and distributed energy solutions for various outdoor communication equipment. The system has the ability to adapt to a wide range of AC input, high output efficiency, all-round lightning protection, complete battery management and remote monitoring and other functions.
High safety regulations involve: the power system meets CE standards.
Rectifier module efficiency is greater than 96%
Operating temperature range of -40～+75℃, 55℃ output without derating
Mature temperature control technology to ensure the safe and stable operation of the system
The power module supports non-destructive hot-swappable technology, making installation and maintenance more convenient
Complete battery management function to extend battery life
Support in-band monitoring
