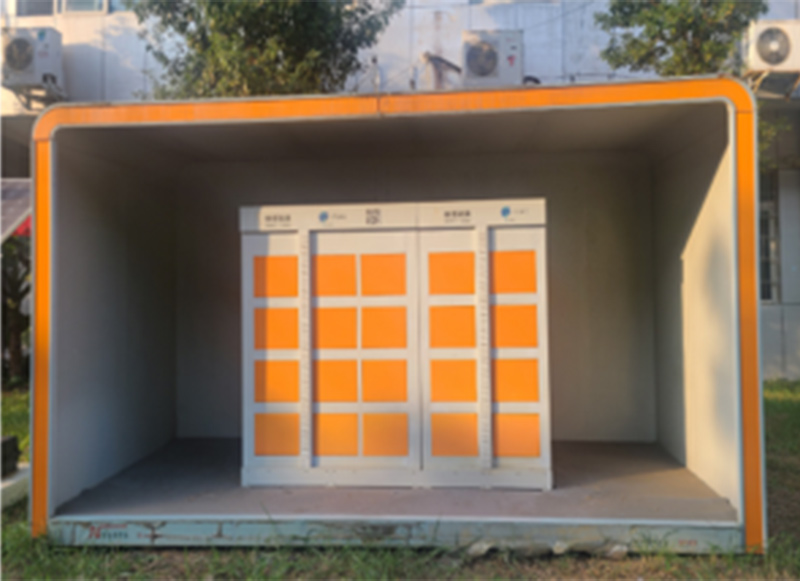

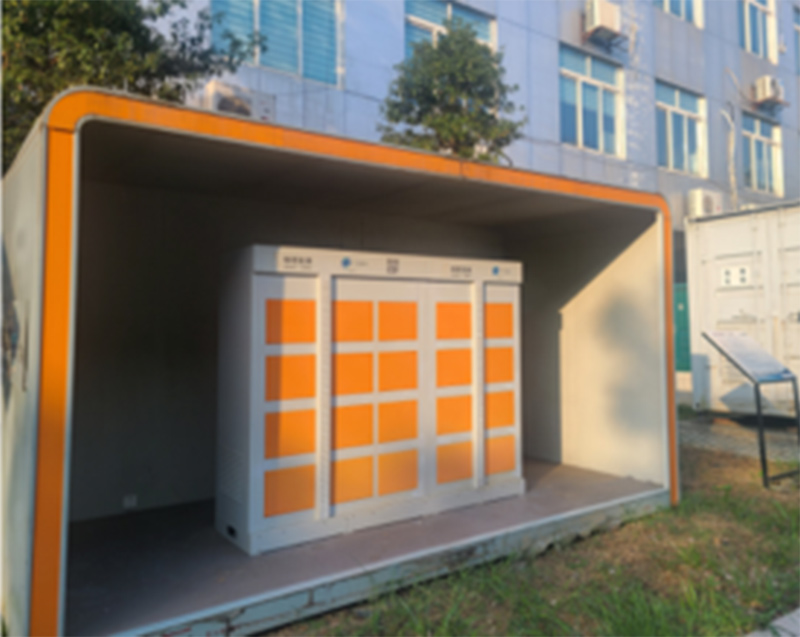

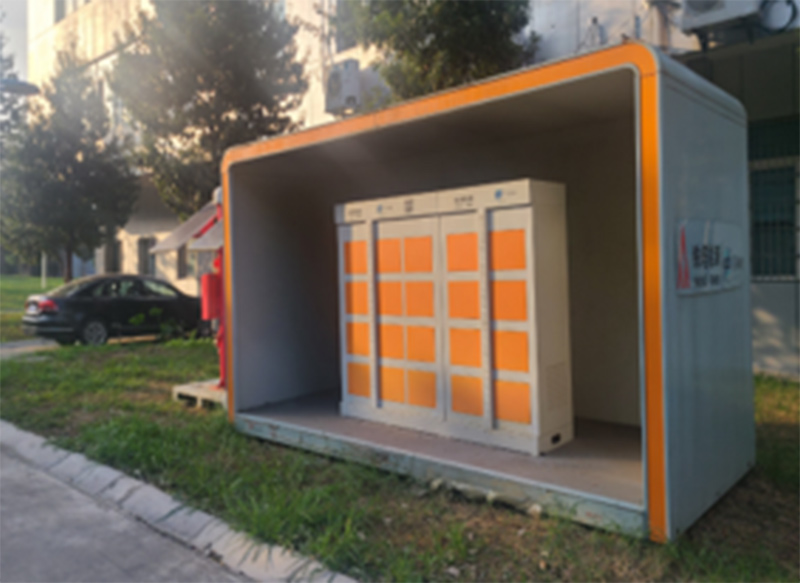

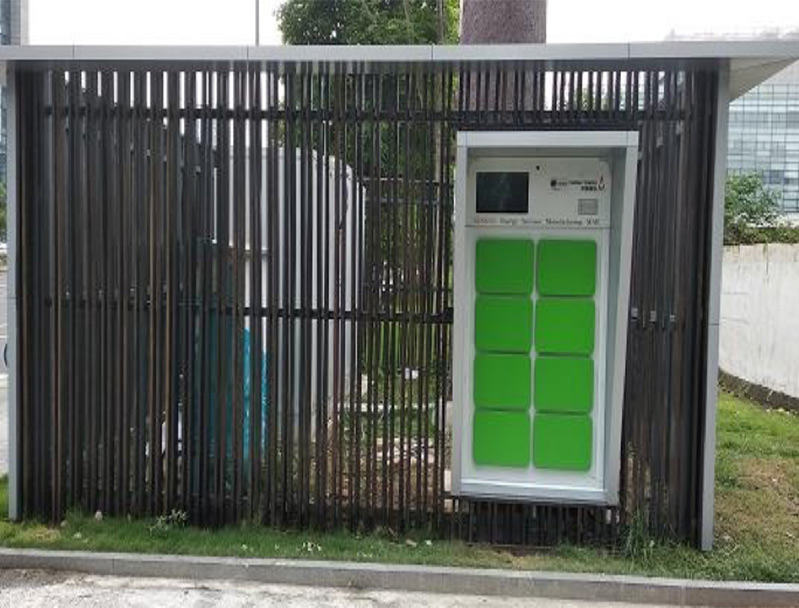

The physical part of the hardware of the entire system is responsible for the charge management, safety management of the battery module and the storage of the fully charged battery. From the product form, it is similar to the express cabinet, each battery is placed in a battery compartment, and the battery can be replaced by controlling the opening and closing of the battery compartment door.
The product is mainly composed of a camera, a display screen, a battery compartment, a battery indicator, a charging module, and various security sensors. The battery module is charged through a specific charging curve.
Traditional express tricycles, like electric two-wheelers, use lead-acid batteries, and they also have the pain points of long charging time, inflexible charging, and insecurity.
| 12 units
8 units |
depends on customers’ requirement |
| description | parameter | ||
| AC input | Input system | Three-phase four-wire | |
| Rated voltage | 380Vac | ||
| voltage range | 323Vac～418Vac | ||
| frequency | 50Hz士2.5Hz | ||
| Maximum current | ≤30A | ||
| Power factor | ≥0.99 | ||
| DC output | Maximum charging current of single warehouse | 10A | |
| Minimum charging current for single storage | 5A | ||
| The output voltage | 30-70VDC | ||
| 12 output channels | 12 | ||
| 8 output channels | 8 | ||
| Mechanical parameters | Cabinet size（Width × depth × height，mm） | 12 output channels | 1800mm×1300mm×600mm(H×W×D) （With base） |
| Operating temperature | -30℃~+55℃ | ||
| Relative humidity | 5％RH～95％RH | ||
| Applicable atmospheric pressure range | 76KPa～101KPa | ||
Our company’s smart battery replacement system is a fast-changing battery product launched by express tricycles including Post, SF, YTO, Shentong, Zhongtong, Yunda and other express tricycles. It can help these users quickly complete the battery replacement and can adapt to various Model, 48V/60V/72V and other voltage levels.
Establish an efficient management cloud platform, conduct effective analysis of data, and push it to end-user customers. Customers can quickly find the nearest replacement cabinet through WeChat applet or APP to exchange for batteries.
It is convenient, efficient and safe for users to use. Fully solve the problems of high battery consumption and long charging time for couriers and takeaways.
