OPEN TURRET

AP Series DC Power Integrated System

AP series DC power supply integrated system is an integrated AC/DC indoor DC power supply system developed by OPEN TURRET,which can provide stable and reliable power supply for wireless access sites, wired access sites, aggregation-level computer rooms, and industrial customer ‘s communication rooms.

Send Inquiry

AP Series combined power integrated system,integrated model AP48300B、 AP48300C、AP48600B、 AP48600C、AP4861000A, etc, This series of cabinet products are made of sheet metal materials. The product integrates a centralized power monitoring system with powerful and comprehensive functions. It can use 485 data links to realize remote monitoring and control.

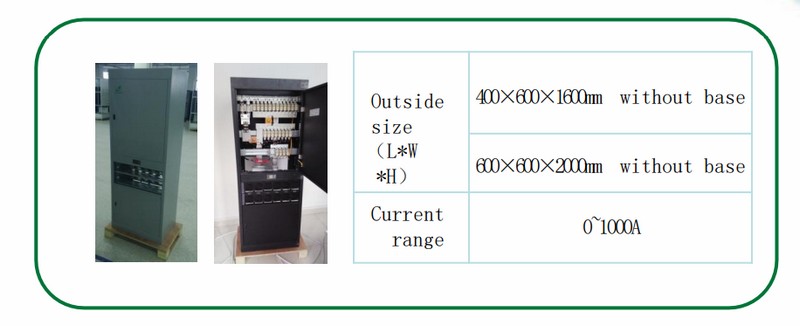

ap series dc power integrated system 2

Product Feature
Intelligent management
1. Adopt hibernation energy-saving technology to effectively reduce system power.
2. Ultra-wide AC input voltage operating range.
3. Perfect AC and DC side lightning protection design.
4. The rectifier module adopts non-destructive hot-swap technology, which is plug and play.
5. Intelligent battery management can effectively improve the performance and service life of the battery pack.
6. Complete fault protection and fault alarm functions
Easy maintenance
It meets the requirements of front-screen (single-sided) maintenance, wall installation(mount), or back-to-back installation, and has enough space for operation and maintenance, which can easily replace AC and DC components; at the same time, it meets the requirements for incoming and outgoing cables on the cabinet.
Protection design
1、The box body is made of high-quality steel, and the surface is sprayed at high temperature, which is anti-corrosion and beautiful.
2、The box is equipped with access control, built-in hinges, and a three-point locking structure.
3、Safe and efficient power supply system: equipped with 48V DC power supply, 220V AC power socket, and installed lightning protection device.

Parameter

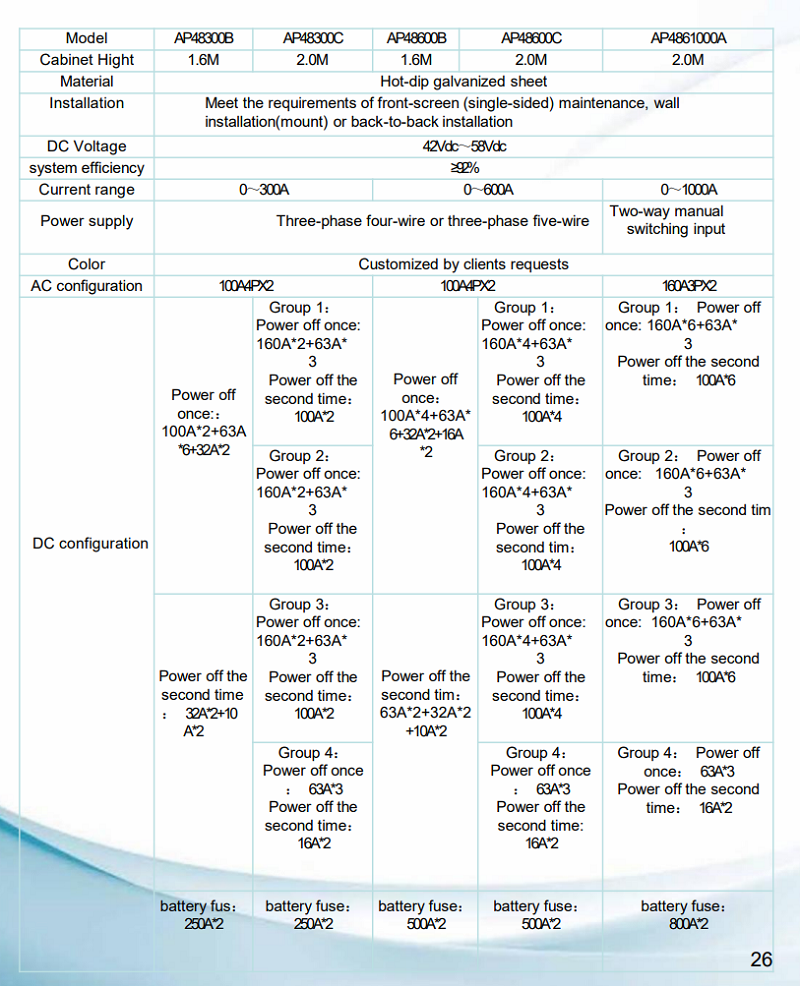

ap series dc power integrated system 3
