Series outdoor OLT cabinet, integrates high-quality outdoor protective cabinets and reliable electrical components to provide a stable and reliable power supply for various outdoor equipment. The system integrates an intelligent temperature control ventilation system, DC power distribution system, AC maintenance sockets, lightning protection and battery compartments, and reserve space for equipment installation. The high-protection level cabinet and stable temperature control system ensure the normal operation of the system in harsh outdoor environments.

Product Feature
• Highly integrated
1.The cabinet is integrated with a power supply compartment, which can install an embedded power supply with a capacity of 60A.
2.An equipment compartment is integrated, which can be used to install OLT equipment.
3.A battery compartment is integrated to accommodate a 40Ah battery.
4.The ODF wiring compartment is integrated, and the ODF can be installed.

• Flexible deployment
The cabinet is small in size and 1 meter in height and can be installed on the roof, ground, and various compact spaces that meet the installation conditions.

Protection design
1.The box body is made of a high-quality galvanized steel plate, and the surface is electrostatically sprayed at high temperature, which is anti-corrosion and beautiful.
2.The protection grade is IP55, which has the characteristics of sun protection, rain protection, dust protection, insect protection, anti-condensation, and so on.
3.The box is equipped with access control and built-in hinges.
4.Safe and efficient power supply system: equipped with 48V DC power supply, 220V AC power socket, and installed lightning protection device.
5.The perfect environment monitoring and collection function can truly realize the unattended operation of outdoor cabinets.

Program Features
1.Solve site deployment challenges The cabinet is small in size and can be deployed in the computer room of the cell and the computer room of the wireless base station, making full use of the existing resources. It can be installed on the wall and installed on the floor, which solves the problem of site deployment

2.Meet the needs of small capacity coverage

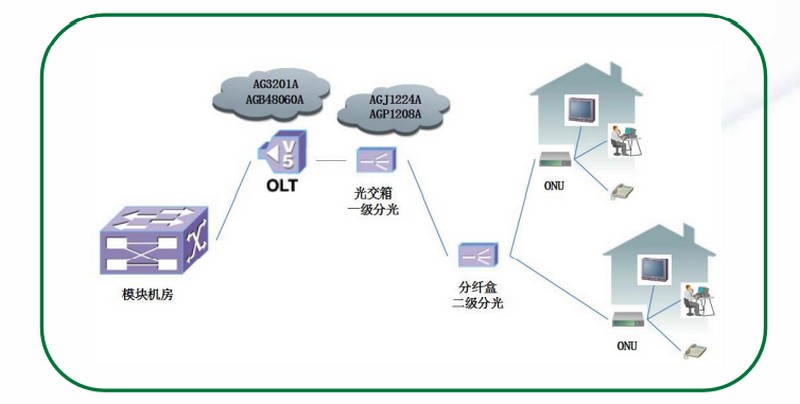

Support 16/32 PON ports to meet 1~2K user access

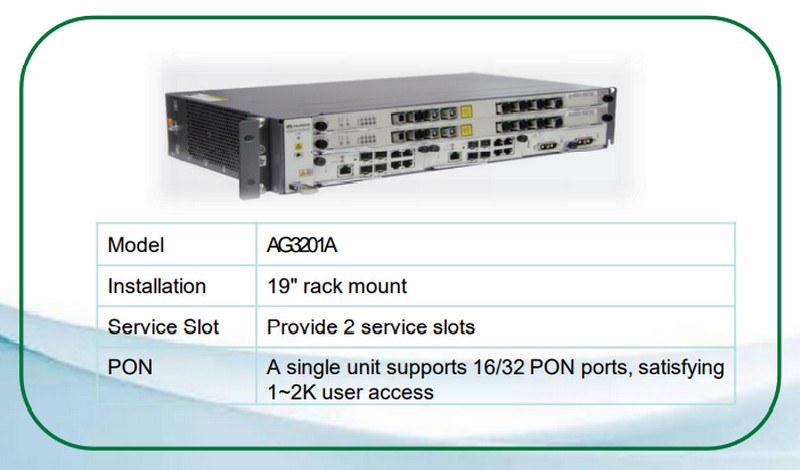

Supporting OLT product

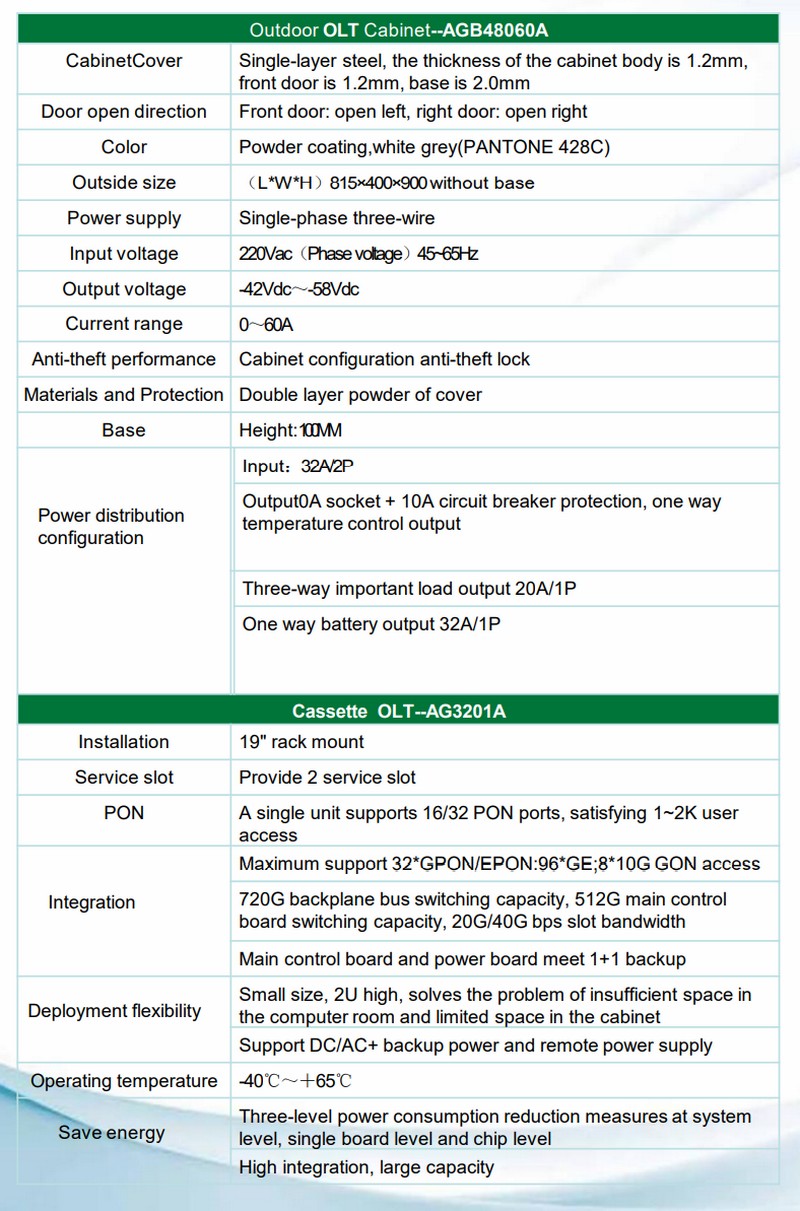

Parameter
