Product Feature
• Basic Features
1.The mesh door design is adopted, and the top of the cabinet is equipped with a cooling fan, which has a good ventilation and heat dissipation effect.
2.The cabinet has good rigidity and strength, as well as good electromagnetic isolation, grounding, noise isolation, ventilation and heat dissipation.
3.The cabinet has anti-vibration, anti-shock, anti-corrosion and other properties.

• Structural features
1.The frame of the whole machine is a sheet metal assembly structure; the static load is 1300KG, and the dynamic load is 1000KG.
2.It can be shipped as a whole machine or in flat-packed parts; easy to assemble, greatly reducing transportation and storage space.

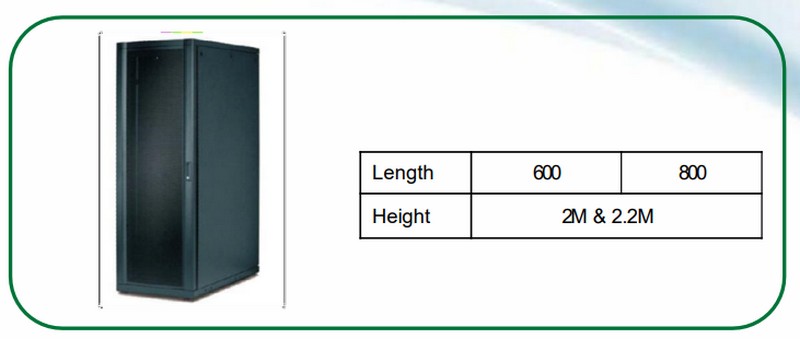

3.The width of the cabinet is standard 600mm and 800mm wide, and the depth and height can be configured arbitrarily.
4.The front door can be equipped with a hexagonal mesh door with a ventilation rate of up to 75%, and can also be equipped with a glass front door; both are compatible with the left and right door opening methods, which is convenient for users to adjust the opening direction according to on-site needs.
5.The rear door is a double-opening mesh door, which saves the installation space of the cabinet.
6.The side panel adopts the upper and lower double openings, which is convenient for users to install the machine.
7.The cabinet is equipped with a Vientiane wheel and a support rod, which is convenient for moving and fixing.
8.Flexible and diverse cabinet options, compatible with upper and lower wiring.

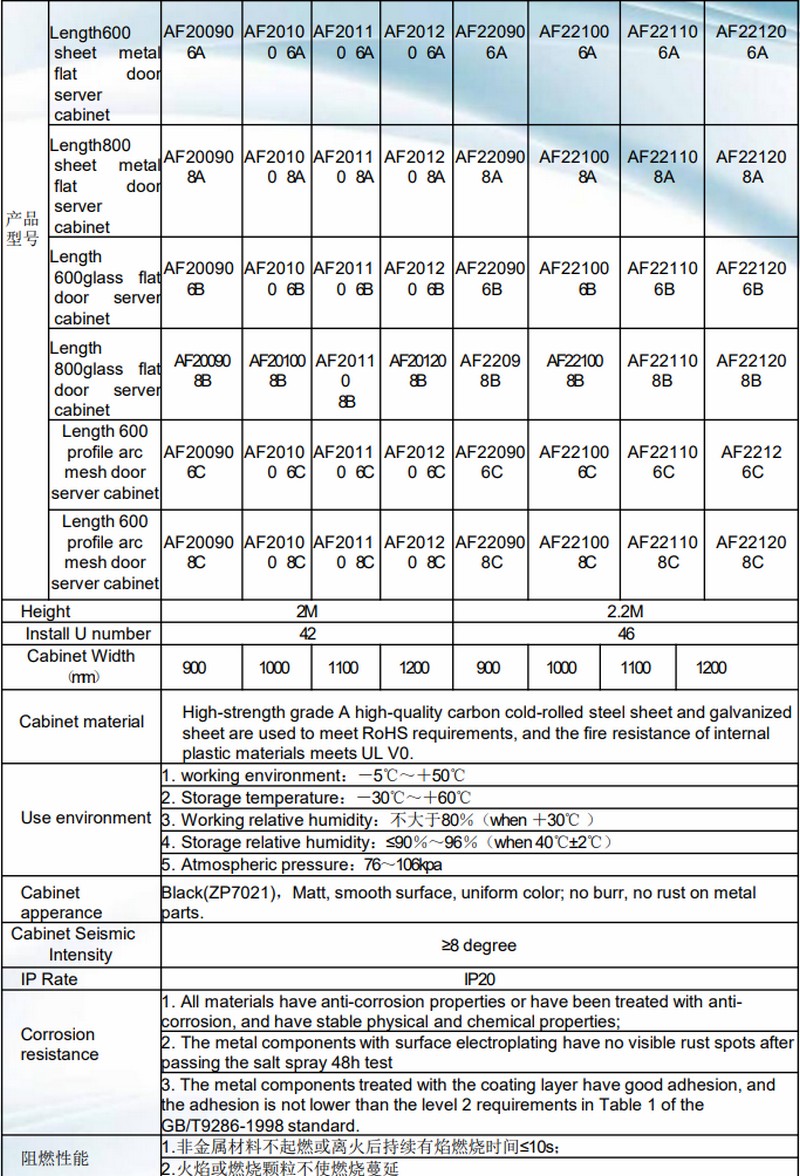

Parameter
