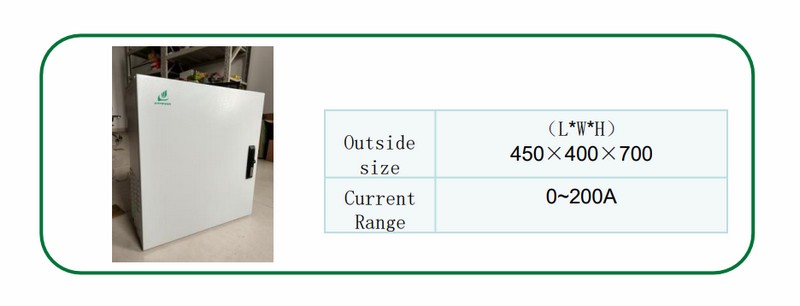

AB series indoor wall-mounted DC system is an integrated AC/DC indoor DC power supply system developed by OPEN TURRET, which can provide a stable and reliable power supply for wireless access sites and industrial customer’s communication rooms Indoor Wall Mounted DC System， Included 2 models: AB48120B and AB48200B. This series of cabinet products are made of sheet metal materials. The product integrates a powerful centralized monitoring system with powerful and comprehensive functions. It can use 485 data links to realize remote monitoring and control.
Product Feature
Intelligent management
1. Adopt hibernation energy-saving technology to effectively reduce system power.
2. Ultra-wide AC input voltage operating range.
3. Perfect AC and DC side lightning protection design.
4. The rectifier module adopts non-destructive hot-swap technology, which is plug and play.
5. Intelligent battery management can effectively improve the performance and service life of the battery pack.
6. Complete fault protection and fault alarm functions
Easy maintenance
With front maintenance, wall installation, and enough space for operation and maintenance, AC and DC components can be easily replaced; at the same time, they can meet the requirements of incoming and outgoing cables on the cabinet. Protection design
1、The box body is made of high-quality steel, and the surface is sprayed at high temperature, which is anti-corrosion and beautiful.
2、The box is equipped with access control, built-in hinges, and a three-point locking structure.
3、Safe and efficient power supply system: equipped with 48V DC power supply, 220V AC power socket, and installed lightning protection device.

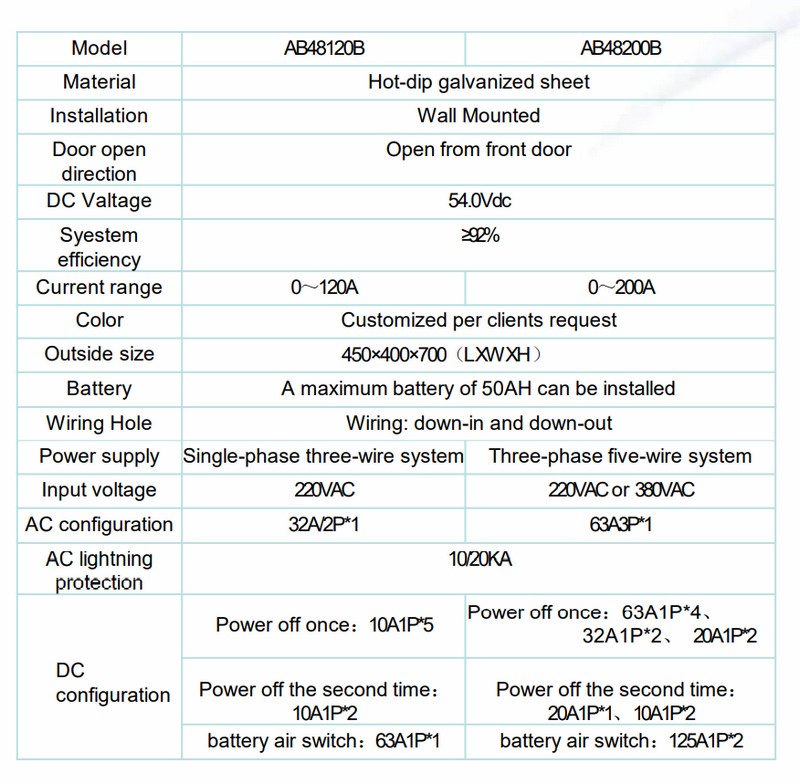

Parameter
